External Rotor Brushless DC motor for Fresh air system.
Structure
● The motor adopts Hall-less Scheme. The power supply and drive are mounted at the end of motor, it can start or stop the motor when customer supply AC voltage and 0-10VDC speed regulating voltage. Analogue signal speed regulating and PWM signal speed regulating are available for choice. Meanwhile the speed-regulating of the communication serial port can be customized to realize centralized control.
● The outer rotor motor is a new-type product. Compared with the inner rotor motor it has advantages of high efficiency, large output power, low noise and compact installing structure. It is suitable for the super-thin fan and the special environmental field.

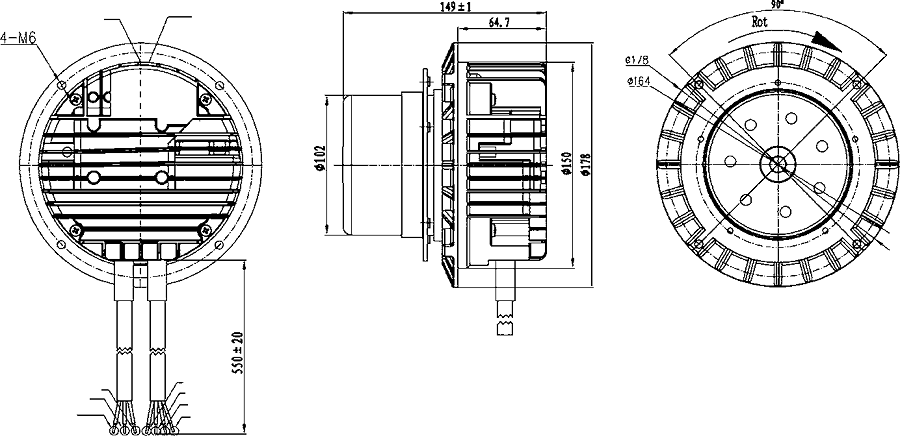

Typical outline dimensions
Main technical data
Part Number 型号 | Voltage 电压 (V) | Frequency 频率 (Hz) | Current 电流 (A) | Input 输入 (W) | Output 输出 (W) | Speed 转速 (r/min) | Efficiency 效率 (%) | IP 等级防护 level protection |
备注 |
MWS100-8E-D | 190-240VAC |
50/60 | 0.7/0.55 | 130 | 100 | 1800 | 77 | 44/20 | |
MWS120-8E-D | 190-240VAC | 0.83/0.66 | 156 | 120 | 2200 | 77 | 44/20 | ||
MWS140-8E-D | 190-240VAC | 0.98/0.77 | 182 | 140 | 2500 | 77 | 44/20 | ||
MWS160-8E-D | 190-240VAC | 1.1/0.88 | 207 | 160 | 2660 | 77 | 44/20 | ||
MWS180-8E-D | 190-240VAC | 1.25/1.0 | 233 | 180 | 2850 | 77 | 44/20 |
● Temperature Range ：-25 to 60℃
● Storage Temperature Range ：-30 to 70℃
● Type of protection：IP20 -IP44
● Power range: 30W~100
● Insulation class ：B
● Direction of rotation ：According to customer requirements
● Bearing/Mounting：Ball Horizontal & Vertical
● Phase Current Protection
● Short Circuit Protection
● Over temperature Protection
● Sensor-less Technology
● Sin wave 180° Drive
