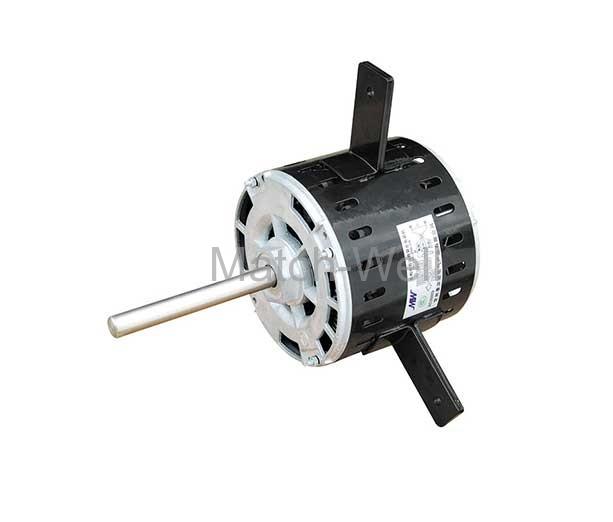

    YF139A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF139A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF139A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
    Information

    Application

    Suitable for condenser fan and similar purpose

    Electrical diagram

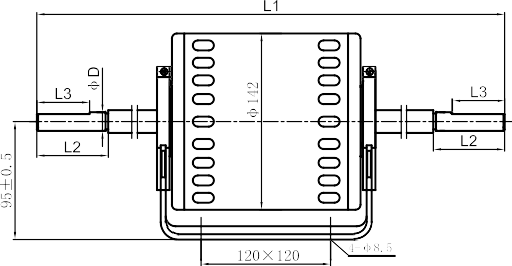

    Typical outline dimensions


     Main technical data

    型号

    工作电源(V/Hz)

    功率(W)

    额定电流(A)

    额定转速RPM

    转速档

    绝缘等级

    配置电容

    防护等级

    YF139-150-6

    115V/60Hz

    1/6HP

    3.2

    1075

    3

    B

    5/370

    IP44

    YF139-187-4

    115V/60Hz

    1/4HP

    3.2

    1650

    3

    B

    7.5/370

    IP44

    YF139-250-6

    115V/60Hz

    1/3HP

    5.0

    1075

    3

    B

    7.5/370

    IP44

    YF139-375-4

    115V/60Hz

    1/2HP

    5.4

    1650

    3

    B

    10/370

    IP44

    YF139-550-6

    460V/60Hz

    3/4HP

    2.32

    1075

    1

    BF

    20/450

    IP44

    YF139-750-6

    208~230V/50Hz

    1HP

    5.4

    900

    1

    BF

    20/450

    IP44

    YF139-120-8

    208~230V/50Hz

    1/6HP

    1.2

    680

    1

    B

    8/450

    IP44

    YF139-270-8

    208~230V/50Hz

    1/3HP

    2.5

    575

    1

    B

    12/450

    IP44

    YF139-125-10

    208~230V/50Hz

    1/6HP

    1.0

    520

    1

    B

    8/450

    IP44

    YF139-150-10

    208~230V/50Hz

    1/5HP

    1.5

    520

    1

    B

    10/450

    IP44

    Notes: The above mentioned specification is representative specification.The specification can also be designed and

    manufactured according to customers requirement;

    The products of 100-120V,200-240V,50/60Hz can also be supplied as requested;

    we will not give special notice on changes, please contact our technical department for further information.
