Product  Specifications

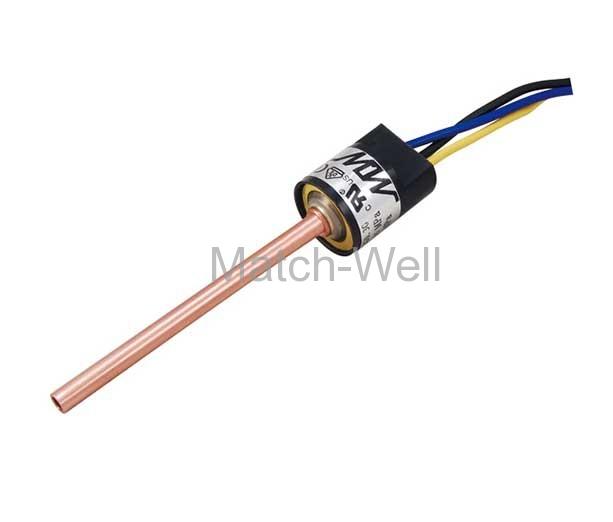

◆ Adopt Eng. thread quick connector (copper flare connection) or brass tube welding structure, easy to use and no special installing requirement.

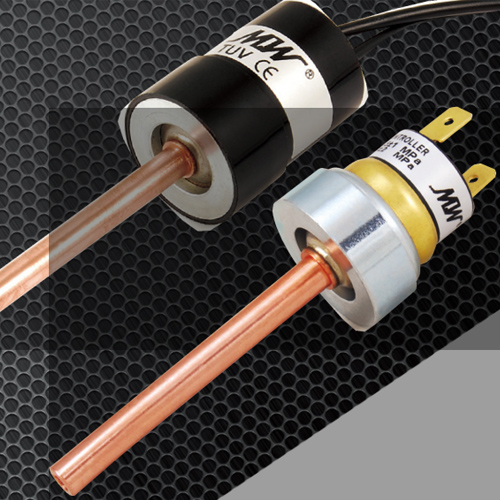

◆ Plugging or wiring connection designed to customers’choice.

◆ Single cut single thrower switch mode and normal open structure..

◆ Security and reliability by adopting fusion welding stainless steel pressure inductor

covered by burst-proof outer shell made of steel.

◆ Any pressure value within 1305PSI~2610PSI (9~18MPa) can be made based on customers' requirement.

◆ Pre-set pressure parameter before delivery allows direct use without resetting on the customers' site.

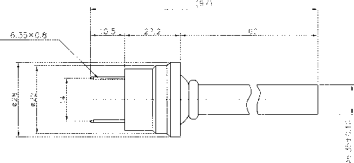

 Typical Outline Drawing

 Operating Principle

◆ The series of pressure control are made based on the theory that an inside reversible stainless steel motion diaphragm turns   over when inducing certain pressure. The electric contact opens with the leader when the diaphragm moves. The switch resets

automatically when induced pressure reduces below rated value.

 Application

◆ The series of products are specially designed and manufactured for the refrigeration equipment using CO2 as refrigerant, the pressure of this kind of refrigeration system is much higher than that of the normal system. The product also applies to all equipments

and toolings with the high protection pressure over 800PSI(5.5 MPa).

Designed  Parameter

◆ Working pressure range: 1305-2610PSI(9~18MPa)

◆ Burst Pressure: 10440PSI(72MPa)

◆ Ambient temperature: -30℃~+80℃

◆ System medium temperature: -50℃~+120℃

◆ Electrical Rating: At 24Vac, normal electric capacity: 125VA

At 120/240Vac, normal electric capacity: 375VA

◆ Dielectric Strength: Between disconnected contacts: AC700V/S

Terminal to outer shell: AC2000V/S

Electric Theory Drawing

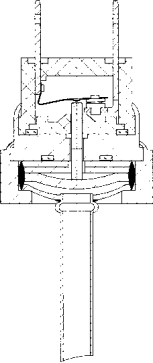

 Typical Structure Drawing
