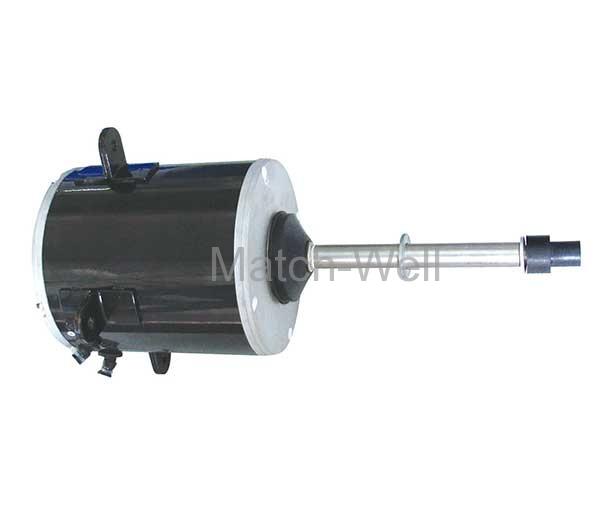

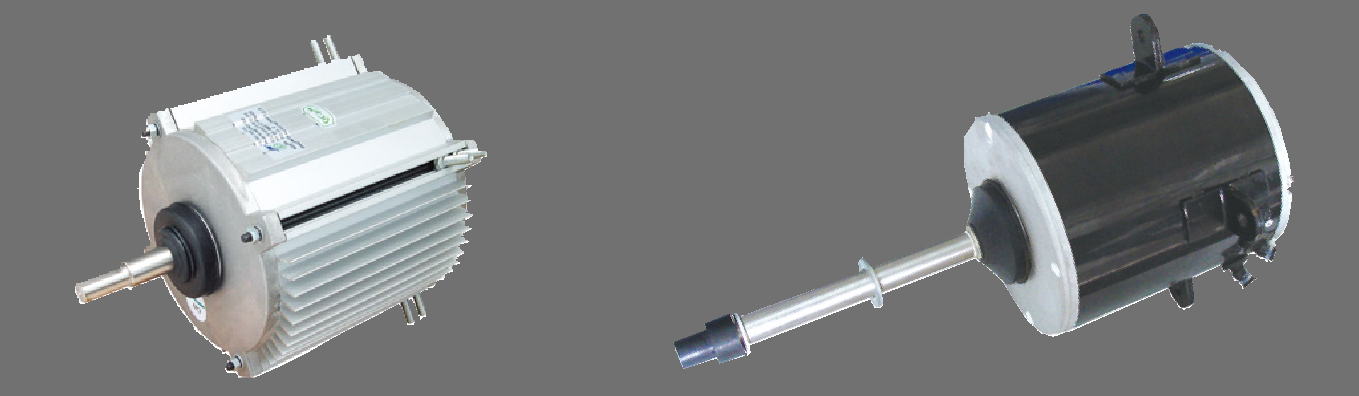

    YS160A/B SERIES THREE PHASE ASYNCHRONOUS MOTOR
      • YS160A/B SERIES THREE PHASE ASYNCHRONOUS MOTOR
      • YS160A/B SERIES THREE PHASE ASYNCHRONOUS MOTOR
    Information

    Application

    Suitable for fan of outdoor unit of central air conditioner and similar purpose

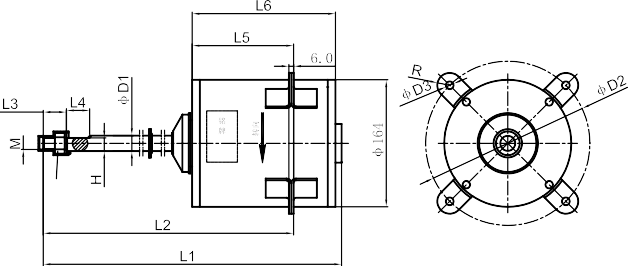

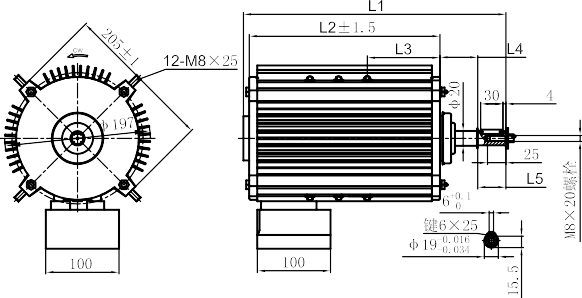

    Typical outline dimensions


    Main technical data


    型号

    Model

    工作电源

    Electrical Rating

    (V/Hz)

    功率

    Power

    (W)

    额定电流

    AMPS

    (A)

    额定转速

    RPM H/M/L

    档位

    Speeds

    接线方式

    Wiring Type

    绝缘等级

    Insulation

    Class

    防护等级

    Protection Level

    YS160-1250-6

    380~415V/50Hz

    1250

    4.0

    860

    1

    Y

    F

    IP54

    YS160-1500-6

    380~415V/50Hz

    1500

    4.5

    930

    1

    Y

    F

    IP54

    YS160-580-8

    380~415V/50Hz

    580

    3.1

    710

    1

    Y

    F

    IP54

    YS160-1000-8

    380~415V/50Hz

    1000

    2.6

    710

    1

    Y

    F

    IP54

    YS160-1150-8

    380~415V/50Hz

    1150

    4.0

    700

    1

    Y

    F

    IP54

    YS160-350-10

    380~415V/50Hz

    350

    1.25

    545

    1

    Y

    F

    IP54

    YS160-560-10

    380~415V/50Hz

    560

    2.2

    523

    1

    Y

    F

    IP54

    YS160-560-12

    460V/60Hz

    560

    2.8

    523

    1

    Y

    F

    IP54

    YS160-400-6/8

    380~415V/50Hz

    400/100

    1.3/0.6

    900/600

    2

    2-Y

    F

    IP54

    YS160-600-8/12

    380~415V/50Hz

    600/65

    2.3/0.7

    700/360

    2

    2-Y

    F

    IP54

    YS160-750-8

    380~415V/50Hz

    200/750

    1.4/2.5

    450/650

    2

    Y/

    F

    IP54

    YS160-900-6/10

    380~415V/50Hz

    900/200

    3.0/1.1

    785/490

    2

    2-Y

    F

    IP54

    YS160-1500-6/8

    380~415V/50Hz

    1500/1100

    4.2/1.8

    900/700

    2

    2Y/

    F

    IP54

    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
