Configuration Specialty
• Same mounting dimension as the AC motors;
• Adopt sensorless control and special DSP control system,can realize intelligent control with electronics;
• Lower vibration,lower noise and small volume,easy to install;
• PWM pulse width modulation technique to achieve wide stepless speed ;
• High efficiency,lower energy consumption, can meet the international and
domestic green energy demand.

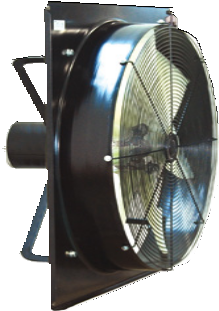

ZF800 ZF800 SERIES AXIAL FAN
序号 | 类型TYPE | 风叶直径Blade Dia. mm | 电压Votage V | 转速Speed RPM | 额定功率Rated Power KW | 电流Current A | 风量Volume M3/H |
1 | ZFB800-7Z-01 | 800 | 338DC | 930 | 1.2 | 4.5 | 21000 |
2 | ZFB800-7Z-02 | 800 | 338DC | 740 | 0.75 | 3 | 18000 |
3 | ZFA800-7Z-01 | 800 | 338DC | 920 | 1.3 | 4.5 | 22000 |
4 | ZFA800-7Z-02 | 800 | 338DC | 730 | 0.75 | 3 | 18000 |
ZF700 ZF700 SERIES AXIAL FAN
序号 | 类型TYPE | 风叶直径Blade Dia. mm | 电压Votage V | 转速Speed RPM | 额定功率Rated Power KW | 电流Current A | 风量Volume M3/H |
1 | ZFA700-7Z-01 | 700 | 338DC | 920 | 0.75 | 3.1 | 14800 |
2 | ZFA700-6Z-01 | 700 | 338DC | 930 | 1.1 | 4.5 | 15500 |
3 | ZFA700-6Z-02 | 700 | 338DC | 730 | 0.75 | 3.1 | 12800 |
4 | ZFA700-4Z-01 | 700 | 338DC | 930 | 0.55 | 2.3 | 15000 |
5 | ZFA700-4Z-02 | 700 | 338DC | 730 | 0.37 | 1.6 | 11800 |
ZF650 ZF650 SERIES AXIAL FAN
序号 | 类型TYPE | 风叶直径Blade Dia. mm | 电压Votage V | 转速Speed RPM | 额定功率Rated Power KW | 电流Current A | 风量Volume M3/H |
1 | ZFA650-6Z-01 | 650 | 338DC | 930 | 0.55 | 2.3 | 12450 |
2 | ZFA650-6Z-02 | 650 | 338DC | 720 | 0.25 | 1 | 9750 |
3 | ZFA650-4Z-01 | 650 | 338DC | 930 | 0.55 | 2.3 | 12200 |
4 | ZFA650-4Z-02 | 650 | 338DC | 720 | 0.25 | 1 | 9700 |
序号 | 类型TYPE | 风叶直径Blade Dia. mm | 电压Votage V | 转速Speed RPM | 额定功率Rated Power KW | 电流Current A | 风量Volume M3/H |
1 | ZFA500-3Z-01 | 500 | 338DC | 930 | 0.1 | 0.3 | 5200 |
2 | ZFA500-4Z-01 | 500 | 338DC | 930 | 0.18 | 0.55 | 5800 |
