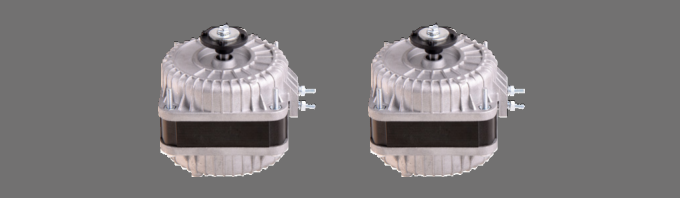

    MOTORS Shaded-Pole Motors
      • MOTORS Shaded-Pole Motors
    Information

     Application


    For freezer fan and similar purposes

     Typical outline Dimensions

     Main technical data


    Type

    型号

    Voltage

    电压

    V

    Frequency

    频率

    Hz

    Current

    电流

    A

    Output

    输出

    W

    Input

    输入

    W

    Speed

    转速

    r/min

    L

    mm

    YZF5-A

    115

    50/60

    0.40

    5

    30

    1300/1550

    81.5

    YZF5-B

    220-240

    50/60

    0.20

    YZF7-A

    115

    50/60

    0.46

    7

    31

    1300/1550

    87.5

    YZF7-B

    220-240

    50/60

    0.23

    YZF10-A

    115

    50/60

    0.50

    10

    36

    1300/1550

    87.5

    YZF10-B

    220-240

    50/60

    0.25

    YZF16-A

    115

    50/60

    0.90

    16

    60

    1300/1550

    93.5

    YZF16-B

    220-240

    50/60

    0.45

    YZF18-A

    115

    50/60

    1.0

    18

    70

    1300/1550

    98.5

    YZF18-B

    220-240

    50/60

    0.50

    YZF25-A

    115

    50/60

    1.4

    25

    90

    1300/1550

    108.5

    YZF25-B

    220-240

    50/60

    0.70

    • Amb. Temperature :-30~+50℃

    • Protection Level :IP20/IP42

    • Insulation class :B

    • Direction of rotation :CCW

    • Winding protection:Impedance protection or thermal protection

    • Bearing/Mounting :Sleeve/Horizontal,Ball/Any
