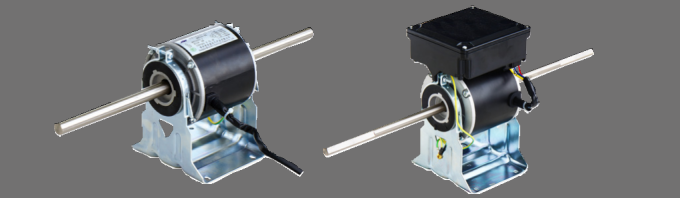

    MWS FAN-COIL SERIES PERMANENT MAGNET DC BRUSHLESS MOTOR
      • MWS FAN-COIL SERIES PERMANENT MAGNET DC BRUSHLESS MOTOR
    Information

    Application

    Used in fan-coil unit of central air conditioner


    Electronics


    Reverse control input-available on

    request controller protection rating: IP20~IP44

    Typical outline dimensions

    Configuration Specialty

    • Same mounting dimension as the AC motors, no need forspecial design and easy to promote.

    • Mechanical-electrical integration design gives small volume and convenient installation.

    • Adopt sensorless control and special DSP control system,can realize intelligent control with electronics.

    • Lower vibration,lower noise and small volume.

    • PWM Pulse width modulation technique to achieve stepless speed.

    • High Efficiency,lower energy consumption, can meet the international and domestic green energy demand.


     Main technical data


    电机型号

    type

    功率

    Power(W)

    电压范围

    Votage

    转速范围

    Speed Range

    防护等级

    Protection Class

    电机效率

    EFF

    MWS30-8K

    30W

    DC380VDC310.DC280

    300-1500无级调速

    IP20

    74%

    MWS60-8K

    60W

    DC380VDC310.DC280

    300-1500无级调速

    IP20

    75%

    MWS80-8K

    80W

    DC380VDC310.DC280

    300-1500无级调速

    IP20

    75%

    MWS60-8E-S

    60W

    AC200VAC240V.AC260V

    300-1500无级调速

    IP44

    78%

    MWS120-8E-S

    120W

    AC200VAC240V.AC260V

    300-1500无级调速

    IP44

    78%


    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
