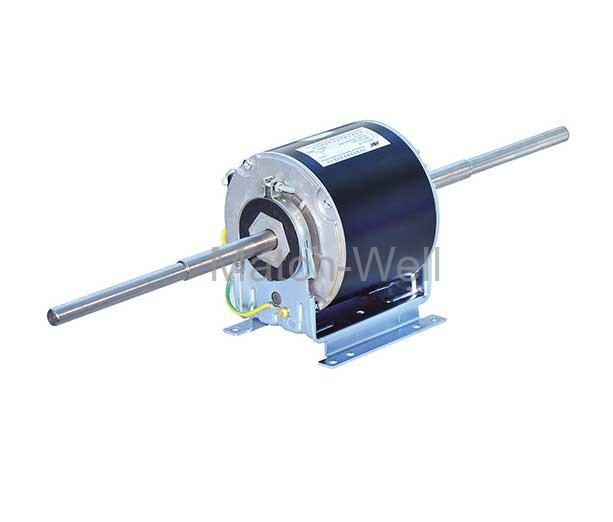

    MWS FANC-COIL SERIES PERMANENT MAGNET DC BRUSHLESS MOTOR
      • MWS FANC-COIL SERIES PERMANENT MAGNET DC BRUSHLESS MOTOR
      • MWS FANC-COIL SERIES PERMANENT MAGNET DC BRUSHLESS MOTOR
    Information

    Application

    Suitable for duct fan set of indoor air conditioner and similarpurpose


    Electronics


    Reverse control input-available on

    request controller protection rating: IP20~IP44


    Configuration Specialty

    • DC motor only, also can provide with external driving and source; can be designed with special magnet to meet small volume and high efficiency.

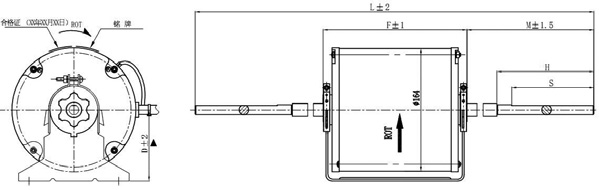

    Typical outline dimensions


     Main technical data


    电机型号

    type

    功率

    Power(W)

    电压范围

    Votage

    转速范围

    Speed Range

    防护等级

    Protection Class

    电机效率

    EFF

    MWS230-8D/S

    (/双轴)

    230W

    DC380VDC310

    300-1500

    IP20~IP44

    80%

    MWS600-8D/S

    (/双轴)

    600W

    DC380VDC310

    300-1500

    IP20~IP44

    85%

    MWS900-8D/S

    (/双轴)

    900W

    DC380VDC310

    300-1500

    IP20~IP44

    85%

    MWS1250-8D/S

    (/双轴)

    1250W

    DC380VDC310

    300-1500

    IP20~IP44

    85%

    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
