Application

Suitable for fan of outdoor unit of central air conditioner and similar purpose

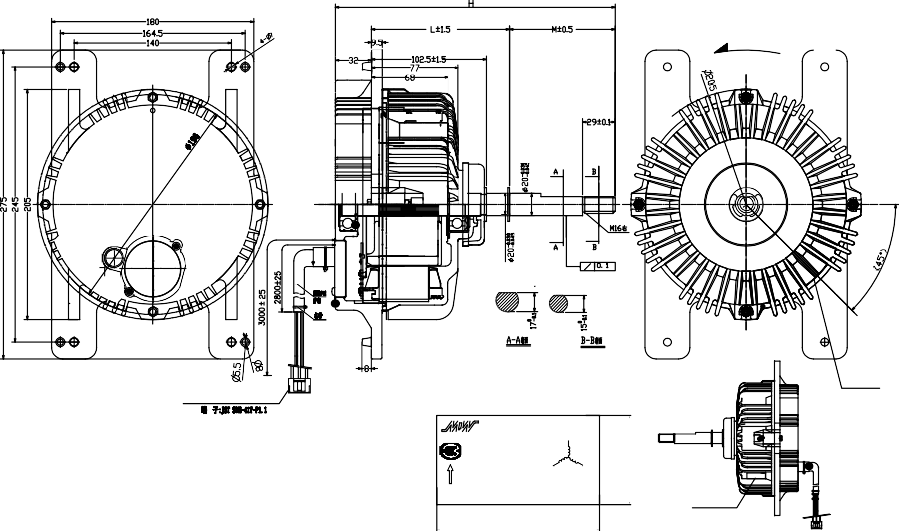

Typical outline Dimensions

Configuration Specialty

• External Driving. Adopt no Hall se nso r,w ith hi g h to rq ue a n d protection level.

• The structure is more compact than iron shell motor. The stator winding  is sealed by BMC, with stronger waterproof and longer life, and lower noise by 2-3dB than iron shell motor.

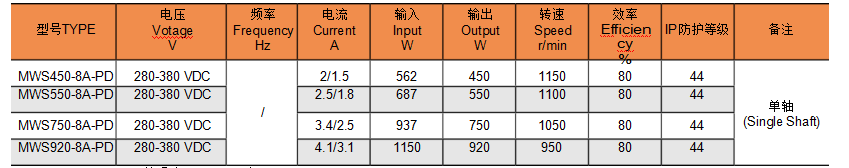

Main technical data

• Amb. Temperature ：-15～+50℃

• Store condition：-30～+60℃

• Protection Level：IP42

• Power range: 450W~920W

• Insulation class：B

• Direction of rotation ：According to customer requirements

• Bearing/Mounting ：Ball/Horizontal
