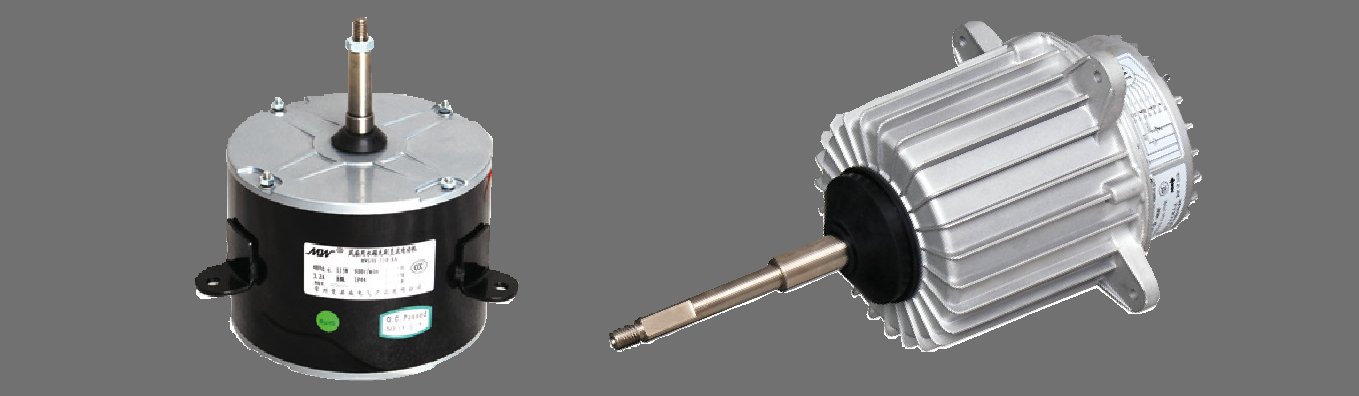

    MWS Series Brushless DC Motors
      • MWS Series Brushless DC Motors
      • MWS Series Brushless DC Motors
    Information

    Application


    Suitable for fan of outdoor unit of central air conditioner and similar purpose

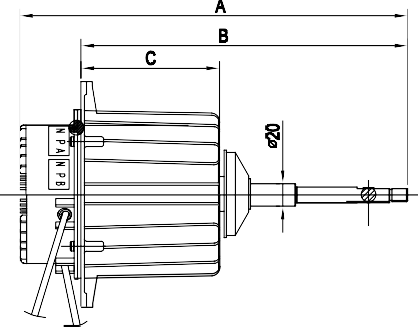

    Typical outline dimensio

    Configuration Specialty

    • Adopt internal driving or external driving; to meet different needs

    • Aluminum alloy shield for internal driving,IP54 protection ,excellent diathermancy ,low temperature to meet long life.

    • Adopt PWM Pulse width modulation technique ,Brushless &Sensor-less design to achieve stepless speed ,high efficiency,

    long life and intelligent controlns


    Main technical data


    电机型号

    type

    功率

    Power(W)

    电压范围

    Votage

    转速范围

    Speed Range

    防护等级

    Protection Class

    电机效率

    EFF

    MWS180-8K

    180W

    DC250V

    300-1300无级调速

    IP54

    ≥79%

    MWS250-8K

    250W

    DC250V

    300-1300无级调速

    IP54

    ≥80%

    MWS380-8K

    380W

    DC339V

    300-1300无级调速

    IP54

    ≥81%

    MWS450-8K

    450W

    DC339V

    300-1300无级调速

    IP54

    ≥82%

    MWS500-8K

    500W

    DC380V

    300-1300无级调速

    IP54

    ≥83%

    MWS50-8K

    50W

    DC24V

    300-1300无级调速

    IPX4

    ≥75%

    MWS150-8K

    150W

    DC48V

    300-1300无级调速

    IPX4

    ≥75%

    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
