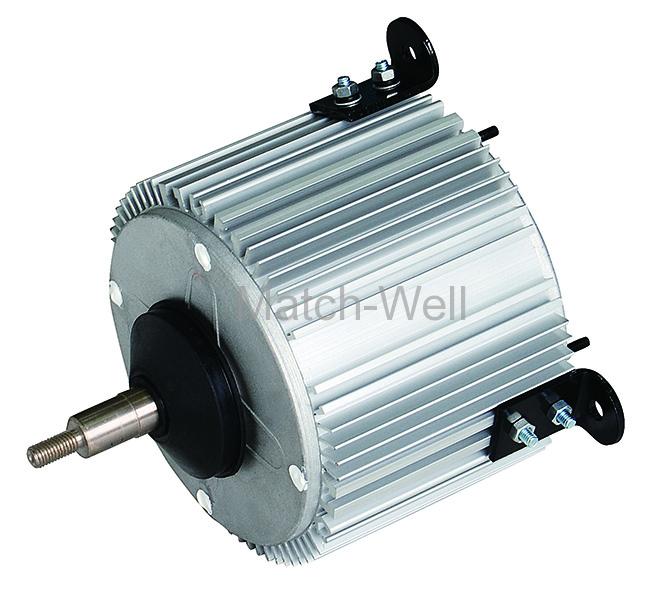

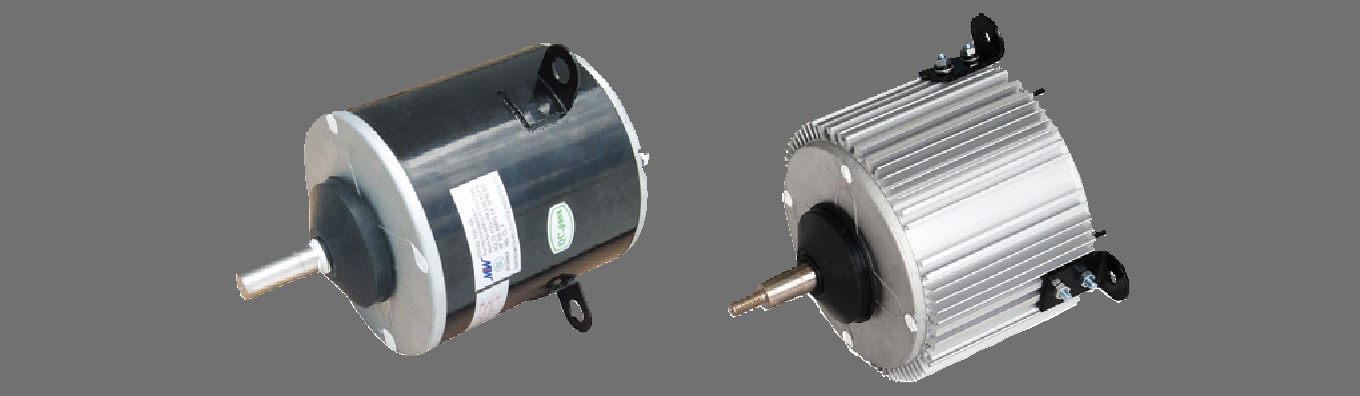

    YS143 SERIES THREE PHASE ASYNCHRONOUS MOTOR
      • YS143 SERIES THREE PHASE ASYNCHRONOUS MOTOR
      • YS143 SERIES THREE PHASE ASYNCHRONOUS MOTOR
    Information

    Application

    Suitable for fan of outdoor unit of central air conditioner and similar purpose

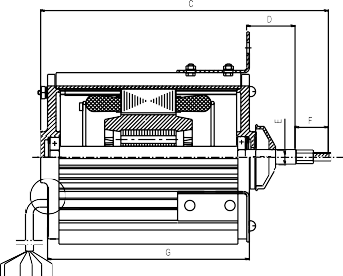

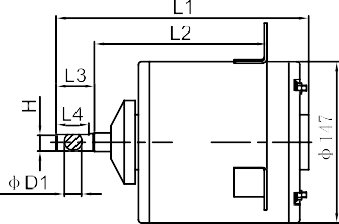

    Typical outline dimensions

    Main technical data


    型号

    Model

    工作电源

    Electrical Rating

    (V/Hz)

    功率

    Power

    (W)

    额定电流

    AMPS

    (A)

    额定转速

    RPM

    接线方式

    Wiring Type

    绝缘等级

    Insulation

    Class

    防护等级

    Protection Level

    YS143-250-6

    380~415V/50Hz

    250

    0.9

    925

    Y

    B

    IPX4

    YS143-370-6

    380~415V/50Hz

    370

    1.3

    925

    Y

    B

    IPX4

    YS143-550-6

    380~415V/50Hz

    550

    1.4

    925

    Y

    B

    IPX4

    YS143-750-6

    380~415V/50Hz

    750

    2.5

    925

    Y

    B

    IPX4

    YS143-120-8

    380~415V/50Hz

    120

    1.0

    720

    Y

    B

    IPX4

    YS143-370-8

    380~415V/50Hz

    370

    1.5

    710

    Y

    B

    IPX4

    YS143-550-8

    380~415V/50Hz

    550

    2.0

    710

    Y

    F

    IPX4

    YS143-750-8

    380~415V/50Hz

    750

    2.5

    710

    Y

    F

    IPX4

    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
