Application
For refrigeration fan and similar purposes

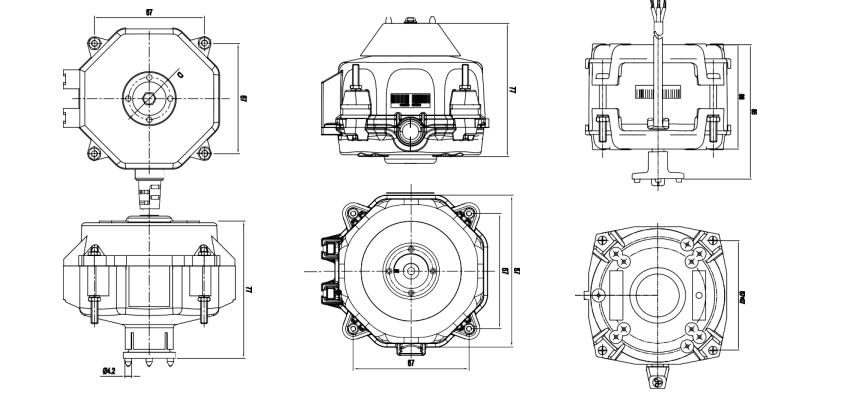

Typical outline dimensions
Main technical data
型号 Part No. | 电源Power Rating | 型号 Part No. | 电源Power Rating | 型号 Part No. | 电源 Power Rating |
ECR82(photo 4) | 230V 50/60Hz | ECR85(photo 5) | 230V 50/60Hz | ECO01A(photo 3) | 115V 50/60Hz |
ECR92(photo 4) | 115V 50/60Hz | ECR95(photo 5) | 115V 50/60Hz | ECO01B(photo 3) | 230V 50/60Hz |
ECR82P(photo 1、2) | 230V 50/60Hz | ECR01A(photo 1、2) | 115V 50/60Hz | ECO82P(photo 3) | 230V 50/60Hz |
ECR92P(photo 1、2) | 115V 50/60Hz | ECR01B(photo 1、2) | 230V 50/60Hz | ECO92P(photo 3) | 115V 50/60Hz |
Notes: The above mentioned specification is representative specification,just for reference .
The specification can also be designed and manufactured according to customers requirement.
we will not give special notice on changes, please contact our technical department for further information.
