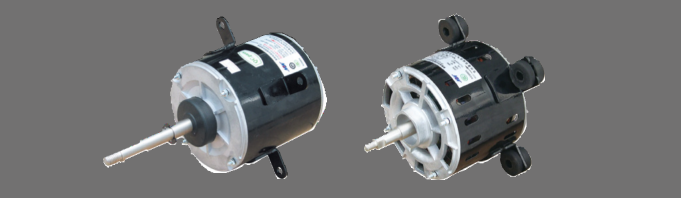

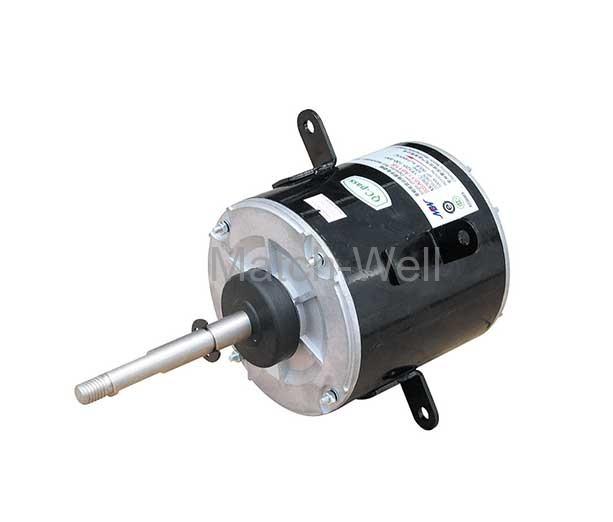

    YF120A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF120A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF120A SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
    Information

    Application


    Suitable for inner and outer fans for commercial split type or ceiling air conditioner and similar purpose


    Electrical diagram


     Typical outline dimensions



    Main technical data

    型号

    Model

    工作电源

    Electrical Rating

    (V/Hz)

    功率

    Power

    (W)

    额定电流

    AMPS

    (A)

    额定转速

    RPM

    转速档

    Speeds

    绝缘等级

    Insulation

    Class

    配置电容

    Capacitor

    (μ F/V)

    YF120-10-8

    220~240V/50Hz

    10

    0.18

    599

    3

    B

    1.0/450

    YF120-20-6

    220~240V/50Hz

    20

    0.35

    745

    3

    B

    2.0/450

    YF120-25-8

    220~240V/50Hz

    25

    0.35

    580

    3

    B

    2.0/450

    YF120-35-6

    220~240V/50Hz

    35

    0.54

    770

    3

    B

    3.0/450

    YF120-45-6

    220~240V/50Hz

    45

    0.7

    830

    3

    B

    4.0/450

    YF120-85-6

    220~240V/50Hz

    85

    1.07

    710

    3

    B

    5.0/450

    YF120-90-4

    220~240V/50Hz

    90

    0.8

    1260

    3

    B

    5.0/450

    YF120-100-6

    220~240V/50Hz

    100

    1.2

    720

    3

    B

    8.0/450

    YF120-125-6

    220~240V/50Hz

    125

    1.2

    845

    3

    B

    8.0/450

    YF120-150-6

    220~240V/50Hz

    150

    1.4

    860

    3

    B

    8.0/450
