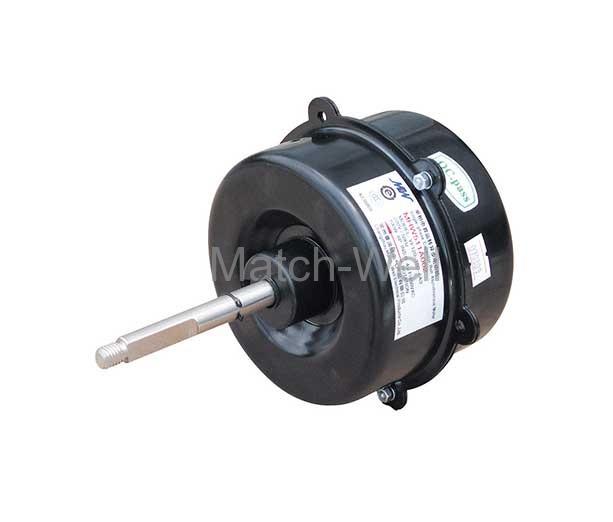

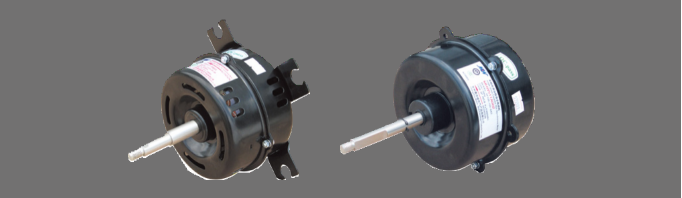

    YF120B SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF120B SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
      • YF120B SERIES SINGLE PHASE CAPACITOR OPERATING ASYNCHRONOUS MOTOR
    Information

    Application




    Suitable for inner and outer fans for commercial split type orceiling air conditioner and similar purpose


    Electrical diagram

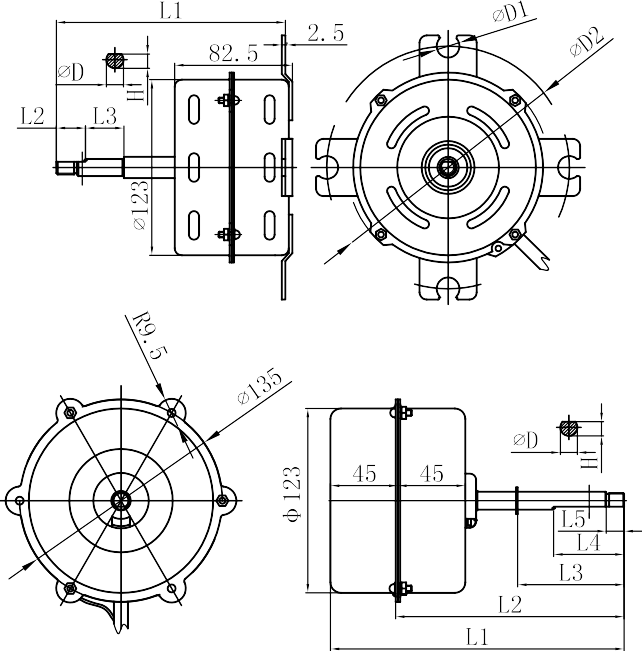

     Typical outline dimensions




    型号

    Model

    工作电源

    Electrical Rating

    (V/Hz)

    功率

    Power

    (W)

    额定电流

    AMPS

    (A)

    额定转速

    RPM

    转速档

    Speeds

    绝缘等级

    Insulation

    Class

    配置电容

    Capacitor

    (μ F/V)

    YF120-20-8

    220~240V/50Hz

    20

    0.33

    455

    3

    B

    3.5/450

    YF120-30-8

    220~240V/50Hz

    30

    0.47

    545

    3

    B

    3.5/450

    YF120-45-6

    220~240V/50Hz

    45

    0.62

    850

    3

    B

    3.0/450

    YF120-60-6

    220~240V/50Hz

    60

    0.7

    870

    3

    B

    4.0/450

    YF120-75-6

    220~240V/50Hz

    75

    0.75

    850

    3

    B

    4.0/450

    YF120-85-6

    220~240V/50Hz

    85

    0.9

    750

    3

    B

    5.0/450

    YF120-100-6

    220~240V/50Hz

    100

    1.1

    900

    3

    B

    6.0/450

    Notes: The above mentioned specification is representative specification.The specification can also be designed and

    manufactured according to customers requirement;

    The products of 100-120V,200-240V,50/60Hz can also be supplied as requested;

    we will not give special notice on changes, please contact our technical department for further information.
