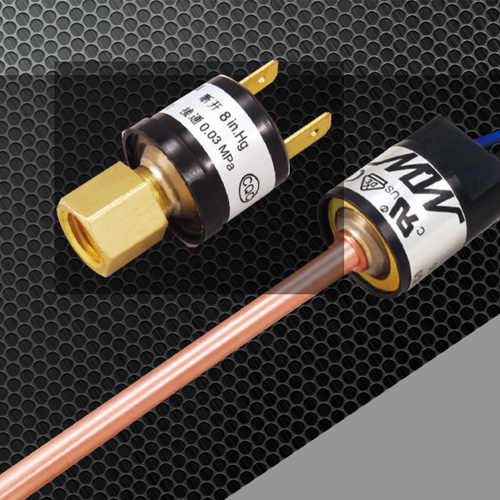

    YK Series Vacuum Pressure Control
      • YK Series Vacuum Pressure Control
    Information

     Product  Specifications


    Adopting Eng. thread quick connector (copper flare connection) or brass tube welding fitting structure, flexibly setting, easy to use and no

    special need for mounting and fixing .

    Plugging or wiring connection designed to customers’ choice.

    SPST connection, normal open or normal close structure to customers’ choice.

    Security and reliability by adopting fusion welding stainless steel pressure inductor and full air-tight connection.

    The minimum vacuum pressure can be 15in.Hg

    Any pressure value within 15in.Hg~8PSI (-0.1~0.05MPa) can be made based on customers'

    requirement.

    Pre-set pressure parameter before delivery allows direct use without resetting on the customers’ site.


    Typical Outline Drawing



    Operating Principle

    The series of pressure control are made based on the theory that an inside reversible stainless steel motion diaphragm turns over when inducing certain pressure. The electric contact opens or closes with the leader when the diaphragm moves. The switch resets automatically when induced pressure reduces below rated value.


     Application

    These pressure controllor are used to protect the low pressure system of the refrigeration equipment which pressure is negative.(under normal atmospheric pressure). It can also be used for control of pneumatic, hydraulic, lubricating oil system.

    Designed  Parameter

    ◆ Working pressure range: 15in.Hg~8PSI(-0.1~0.05MPa)

    ◆ Burst Pressure: 2500PSI

    ◆ Ambient temperature: -30℃~+80℃

    ◆ System medium temperature: -50℃~+120℃

    ◆ Life cycles under the rated electric current:

    30,000 times, 50,000 times and 100,000 times optional

    ◆ Electrical Rating: At 24Vac, normal electric capacity: 125VA At 120/240Vac, normal electric capacity: 375VA

    ◆ Dielectric Strength: Between disconnected contacts: AC700V/S

    Terminal to outer shell: AC2000V/S

    ◆ Safety proof pressure: The pressure that the control can endure while not affects the rated motion value

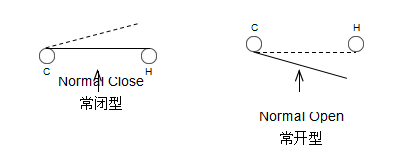

    Electric Theory Drawing
