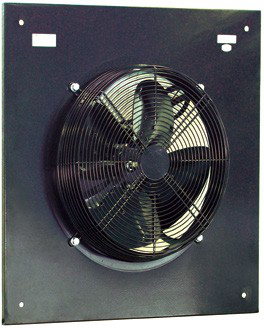

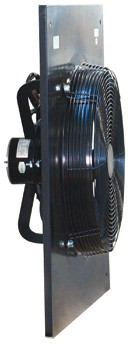

    ZF450 SERIES AXIAL FAN
      • ZF450 SERIES AXIAL FAN
    Information

    Configuration Specialty


    • Antirust aluminum alloy blade or plastic fan blade ;

    • Cold-rolled plate deflector;

    • Aluminum or steel casing motor shell and end cap;

    • All the parts painted with pure polyester outdoor powder or anodized;

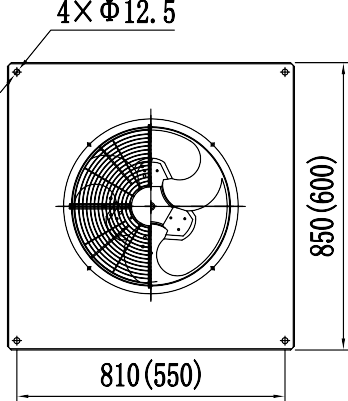

    Typical outline dimensions

    Main technical data


    序号

    类型TYPE

    风叶直径

    Blade Dia.

    mm

    电压

    Votage

    V

    频率

    Frequency

    Hz

    转速

    Speed

    RPM

    额定功率

    Rated Power

    KW

    电流

    Current

    A

    电容

    Capacitor

    μF/V

    风量

    Volume

    M3/H

    噪音

    Noise level

    dB(A)

    1

    ZFA450-3S-01

    450

    380~

    50

    1450

    0.18

    0.85

    /

    5300

    58

    2

    ZFA450-3S-02

    450

    380~

    50

    1436

    0.18

    0.89

    /

    5800

    58

    3

    ZFA450-3S-03

    450

    380~

    50

    1433

    0.25

    1.05

    /

    6300

    60

    4

    ZFA450-4S-01

    450

    380~

    50

    1420

    0.18

    0.87

    /

    4800

    58

    5

    ZFA450-4S-02

    450

    380~

    50

    1440

    0.18

    0.85

    /

    5700

    58

    6

    ZFA450-4S-03

    450

    380~

    50

    1420

    0.25

    0.99

    /

    6300

    60


    Performance Data



    项目序号No.

    转速

    Speed

    功率

    Input

    Power

    电流

    Current

    噪音

    Noise

    RPM

    W

    A

    dB(A)

    1

    1411

    478

    1.04

    55

    2

    1420

    439

    0.99

    54

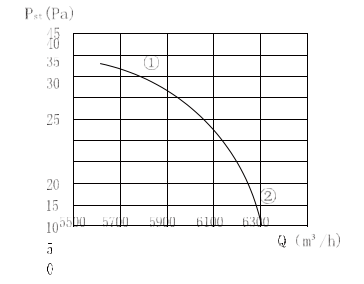

    Peformance Curve
