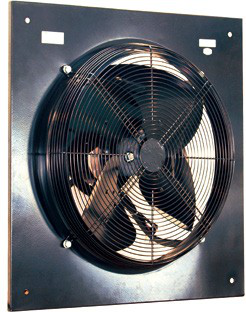

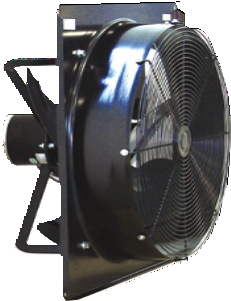

    ZF650 SERIES AXIAL FAN
      • ZF650 SERIES AXIAL FAN
    Information

     Configuration Specialty


    • Antirust aluminum alloy blade or plastic fan blade ;

    • Cold-rolled plate deflector;

    • Aluminum or steel casing motor shell and end cap;

    • All the parts painted with pure polyester outdoor powder or anodized;

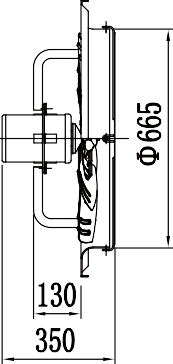

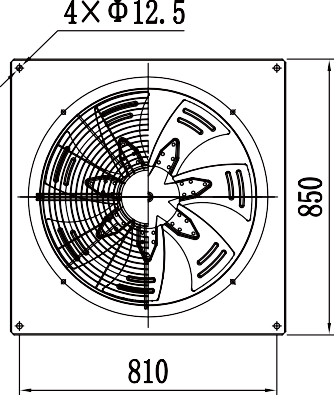

     Typical outline dimensions

    Main technical data


    序号

    类型TYPE

    风叶直径

    Blade Dia.

    mm

    电压

    Votage

    V

    频率

    Frequency

    Hz

    转速

    Speed

    RPM

    额定功率

    Rated Power

    KW

    电流

    Current

    A

    电容

    Capacitor

    μF/V

    风量

    Volume

    M3/H

    噪音

    Noise level

    dB(A)

    1

    ZFA650-6S-01

    650

    380~

    50

    932

    0.55

    1.82

    /

    12450

    67

    2

    ZFA650-6S-02

    650

    380~

    50

    717

    0.25

    1.3

    /

    9750

    61

    3

    ZFA650-4S-01

    650

    380~

    50

    942

    0.55

    1.83

    /

    12200

    67

    4

    ZFA650-4S-02

    650

    380~

    50

    721

    0.25

    1.29

    /

    9700

    62

    Performance Data


    项目序号No.

    转速

    Speed

    功率

    Input

    Power

    电流

    Current

    噪音

    Noise

    RPM

    W

    A

    dB(A)

    1

    930

    836

    1.92

    67

    2

    942

    755

    1.83

    66

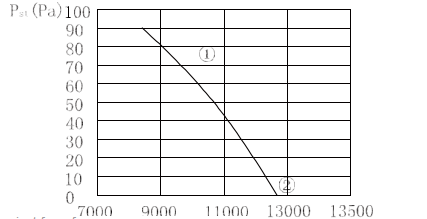

    Peformance Curve


    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
