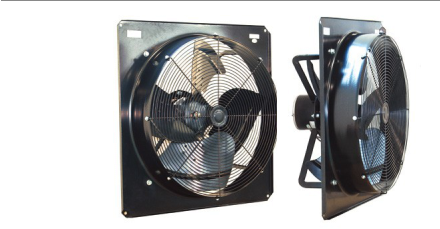

    ZF700 SERIES AXIAL FAN
      • ZF700 SERIES AXIAL FAN
    Information

    Configuration Specialty


    • Antirust aluminum alloy blade or plastic fan blade ;

    • Cold-rolled plate deflector;

    • Aluminum casing motor shell and end cap;

    • All the parts painted with pure polyester outdoor powder or anodized;

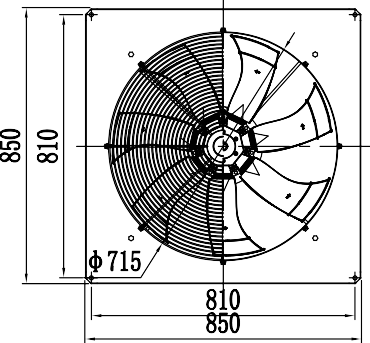

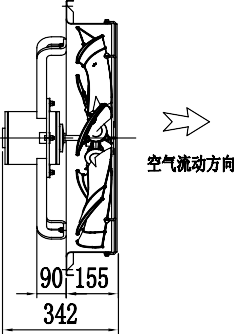

    Typical outline dimensions


    Main technical data



    序号



    类型TYPE

    风叶直径

    Blade Dia.

    mm

    电压

    Votage

    V

    频率

    Frequency

    Hz

    转速

    Speed

    RPM

    额定功率

    Rated Power

    KW

    电流

    Current

    A

    电容

    Capacitor

    μF/V

    风量

    Volume

    M3/H

    噪音

    Noise level

    dB(A)

    1

    ZFB700-7S-01

    700

    380~

    50

    930

    1.5

    3.9

    /

    17500

    71

    2

    ZFB700-7S-02

    700

    380~

    50

    740

    0.75

    2.7

    /

    13700

    65

    3

    ZFA700-7S-01

    700

    380~

    50

    920

    0.75

    1.7

    /

    14800

    67

    4

    ZFA700-6S-01

    700

    380~

    50

    930

    1.1

    3.1

    /

    15500

    68

    5

    ZFA700-6S-02

    700

    380~

    50

    730

    0.75

    2.2

    /

    12800

    63

    6

    ZFA700-4S-01

    700

    380~

    50

    930

    0.55

    2.05

    /

    15000

    65

    7

    ZFA700-4S-02

    700

    380~

    50

    730

    0.37

    1.9

    /

    11800

    61


     Performance Data


    项目序号No.

    转速

    Speed

    功率

    Input

    Power

    电流

    Current

    噪音

    Noise

    RPM

    W

    A

    dB(A)

    1

    920

    1480

    3.9

    71

    2

    930

    1340

    3.8

    70

    3

    730

    750

    2.7

    66

    4

    740

    660

    2.6

    65

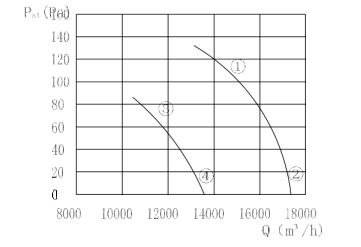

    Peformance Curve


    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
