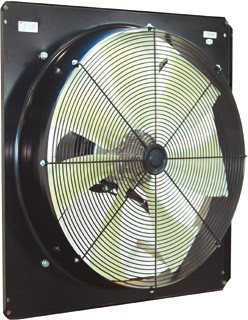

    ZF800 SERIES AXIAL FAN
      • ZF800 SERIES AXIAL FAN
    Information

    Configuration Specialty


    • Antirust aluminum alloy blade or plastic fan blade ;

    • Cold-rolled plate deflector;

    • Aluminum casing motor shell and end cap;

    • All the parts painted with pure polyester outdoor powder or anodized;

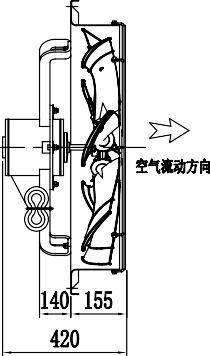

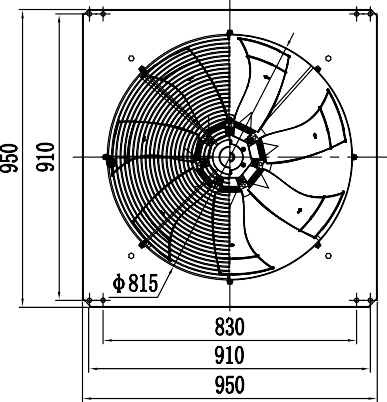

     Typical outline dimensions

     Main technical data


    序号

    类型TYPE

    风叶直径

    Blade Dia.

    mm

    电压

    Votage

    V

    频率

    Frequency

    Hz

    转速

    Speed

    RPM

    额定功率

    Rated Power

    KW

    电流

    Current

    A

    电容

    Capacitor

    μF/V

    风量

    Volume

    M3/H

    噪音

    Noise level

    dB(A)

    1

    ZFB800-7S-01

    800

    380~

    50

    930

    1.2

    2.7

    /

    20500

    72

    2

    ZFB800-7S-02

    800

    380~

    50

    740

    0.75

    2.5

    /

    17000

    66

    3

    ZFA800-7S-01

    800

    380~

    50

    920

    1.3

    3

    /

    22000

    71

    4

    ZFA800-7S-02

    800

    380~

    50

    730

    0.75

    2.7

    /

    18000

    65

     Performance Data


    项目序号No.

    转速

    Speed

    功率

    Input

    Power

    电流

    Current

    噪音

    Noise

    RPM

    W

    A

    dB(A)

    1

    921

    1532

    2.83

    73

    2

    926

    1464

    2.74

    72

    3

    730

    750

    2.5

    66

    4

    740

    660

    2.4

    65

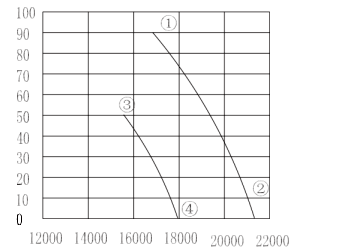

    Peformance Curve

    Notes: The above mentioned specification is representative specification,just for reference .

    The specification can also be designed and manufactured according to customers requirement.

    we will not give special notice on changes, please contact our technical department for further information.
